Home > Products > Angle head

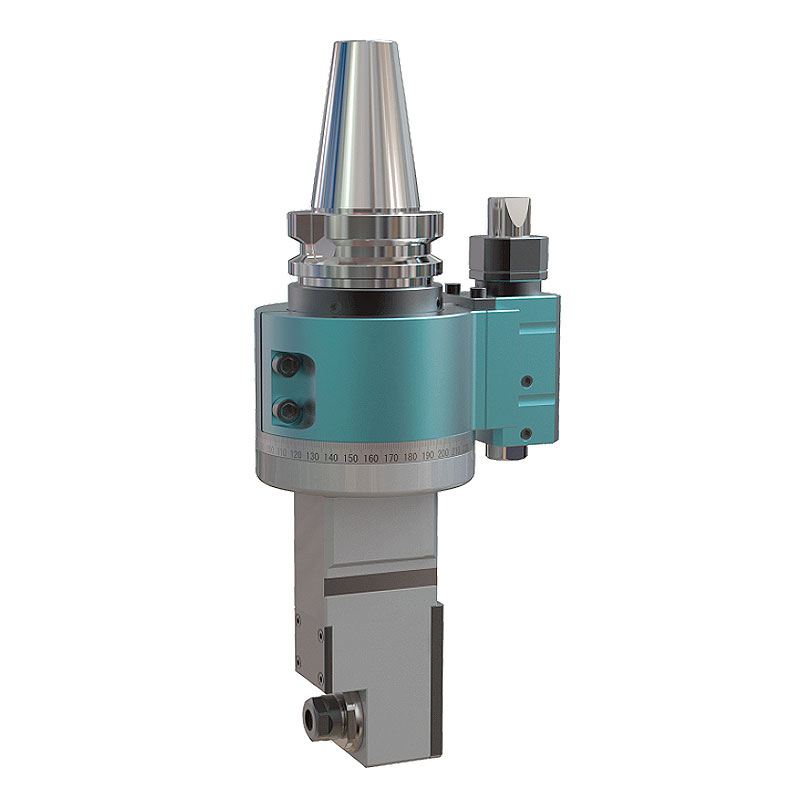

AG90-ER11F

Inquire Now Next

Product Details

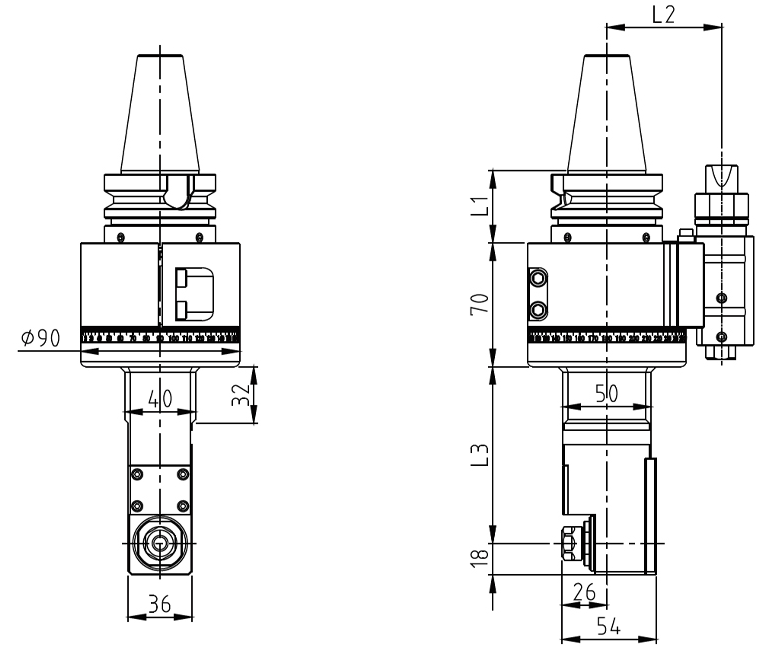

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-ER11F-100	ER 1 1	41/48	65/80	100	1Kw	4500RPM	9.6Nm	1:1
AG90-ER11F-150	ER 1 1	41/48	65/80	150	1Kw	4500RPM	9.6Nm	1:1
AG90-ER11F-200	ER 1 1	41/48	65/80	200	1Kw	4500RPM	9.6Nm	1:1
