Home > Products > Angle head

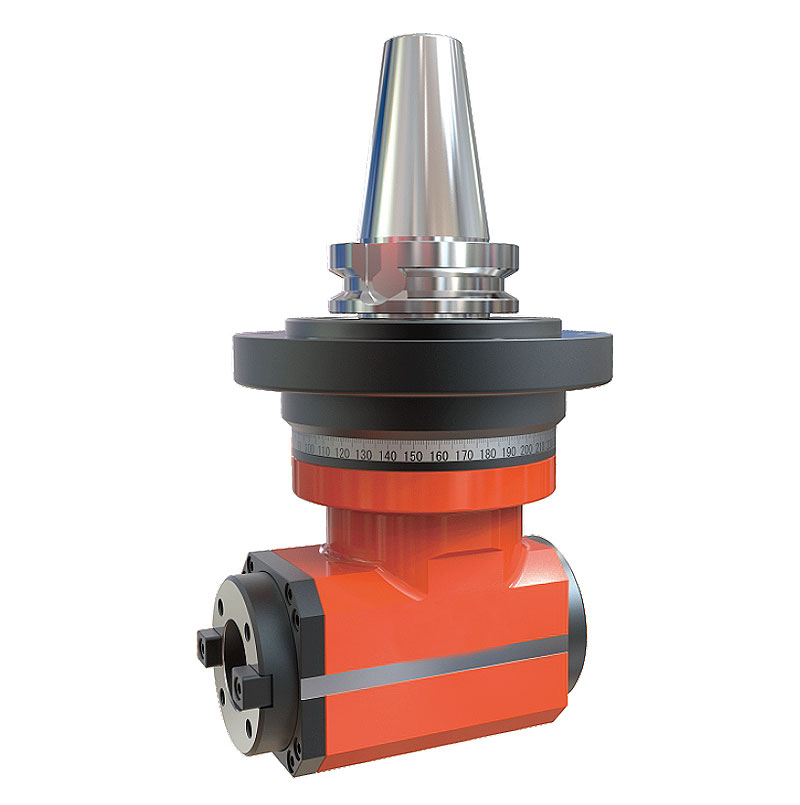

AG90-BT40

Inquire Now Next

Product Details

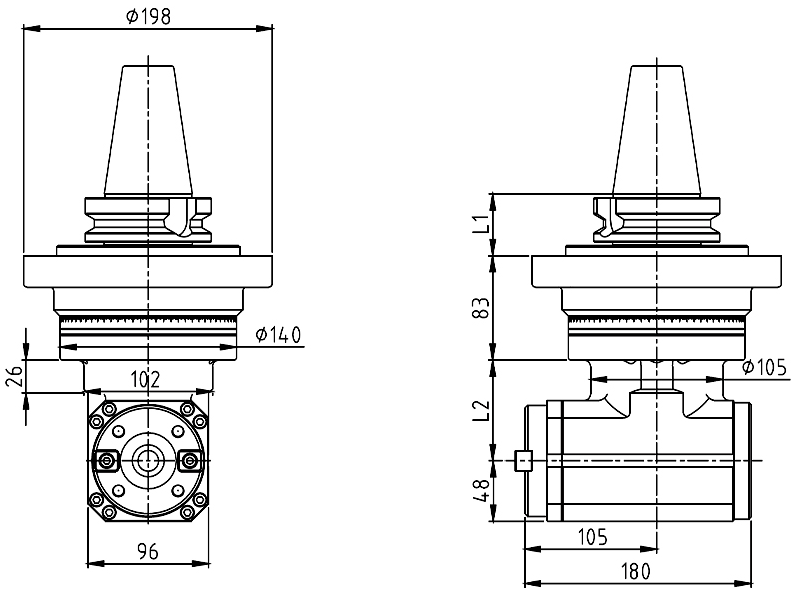

Product Size

Product Parameters

Model	Output	L1	L2	Power	Maximum speed	Maximum torque	Speed ratio
AG90-BT40-80	BT40	42/49	80	8Kw	3000RPM	100Nm	1:1
AG90-BT40-160	BT40	42/49	160	8Kw	3000RPM	100Nm	1:1
AG90-BT40-240	BT40	42/49	240	8Kw	3000RPM	100Nm	1:1
