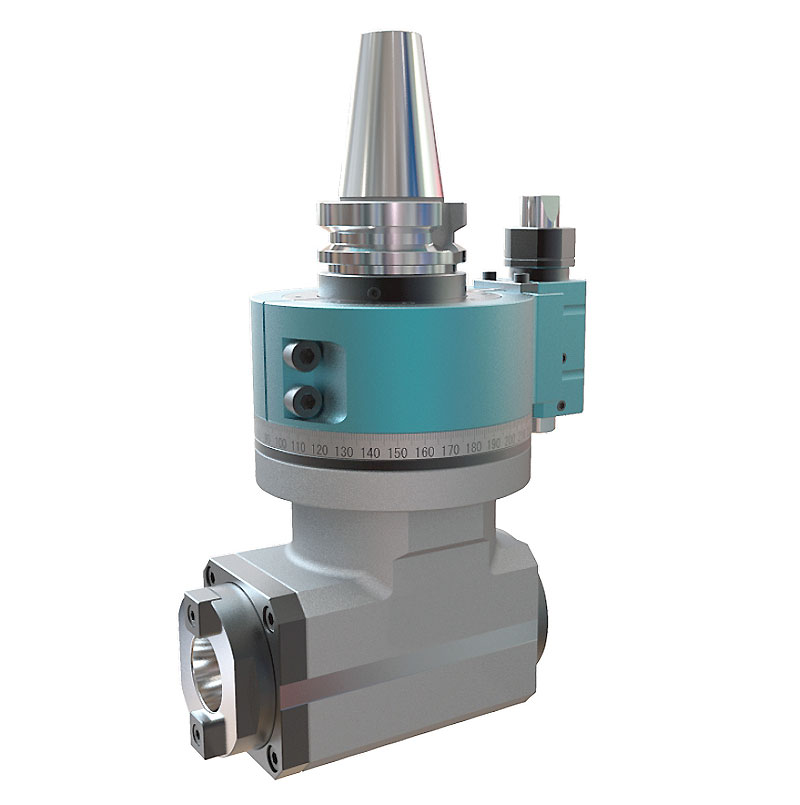

AG90-BT30

Inquire Now Next

Product Details

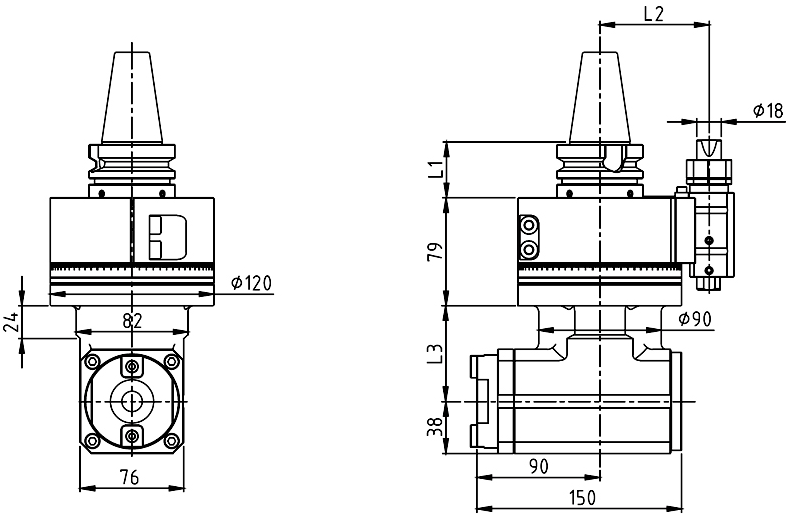

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-BT30-70	ER30	41/48	80	70	6Kw	3500RPM	75Nm	1:1
AG90-BT30-150	ER30	41/48	80	150	6Kw	3500RPM	75Nm	1:1
AG90-BT30-230	ER30	41/48	80	230	6Kw	3500RPM	75Nm	1:1
