Home > Products > Angle head

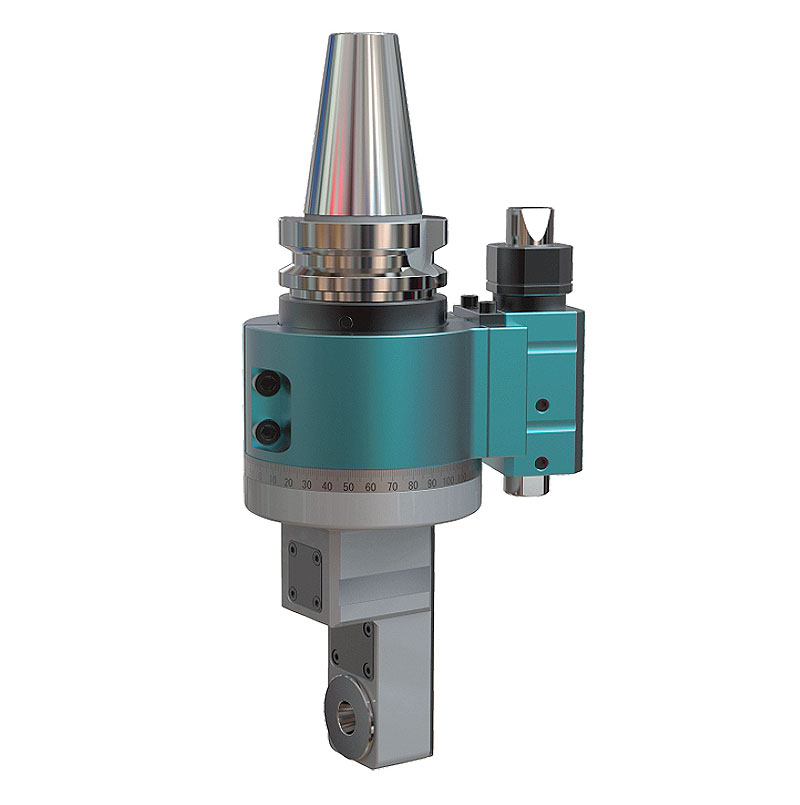

AG90-B6

Inquire Now Next

Product Details

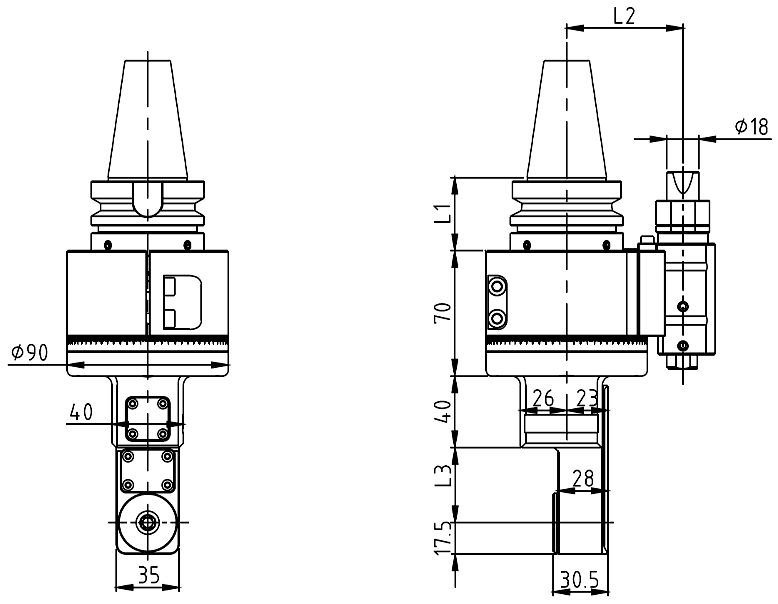

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-B6	0-φ6	41/48	65/80	42	1Kw	4500RPM	9.6Nm	1:1
AG90-B6-70	0-φ6	41/48	65/80	71	1Kw	4500RPM	9.6Nm	1:1
AG90-B6- 100	0-φ6	41/48	65/80	100	1Kw	4500RPM	9.6Nm	1:1
