Home > Products > Angle head

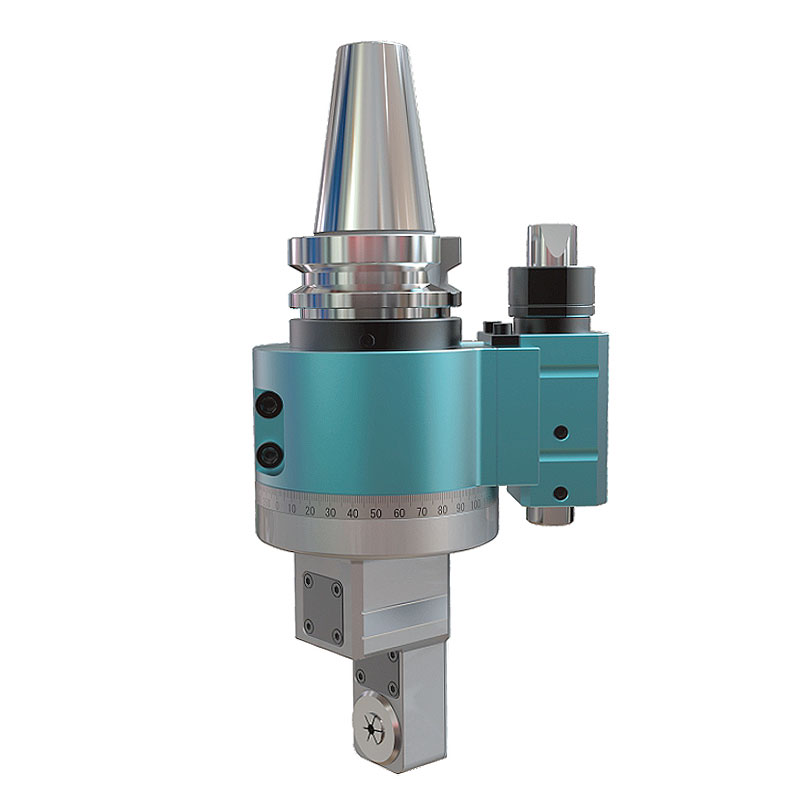

AG90-B4

Inquire Now Next

Product Details

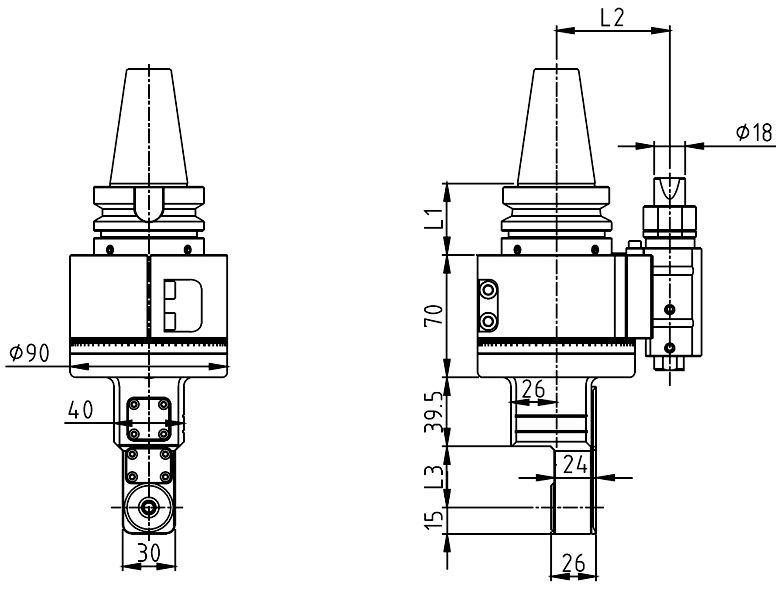

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-B4	0-φ4	41/48	65/80	35	1Kw	4500RPM	6Nm	29:24 (Growth rate)
AG90-B4-60	0-φ4	41/48	65/80	59	1Kw	4500RPM	6Nm	29 :24 (Growth rate)
AG90-B4- 80	0-φ4	41/48	65/80	83	1Kw	4500RPM	6Nm	29 :24 (Growth rate)
