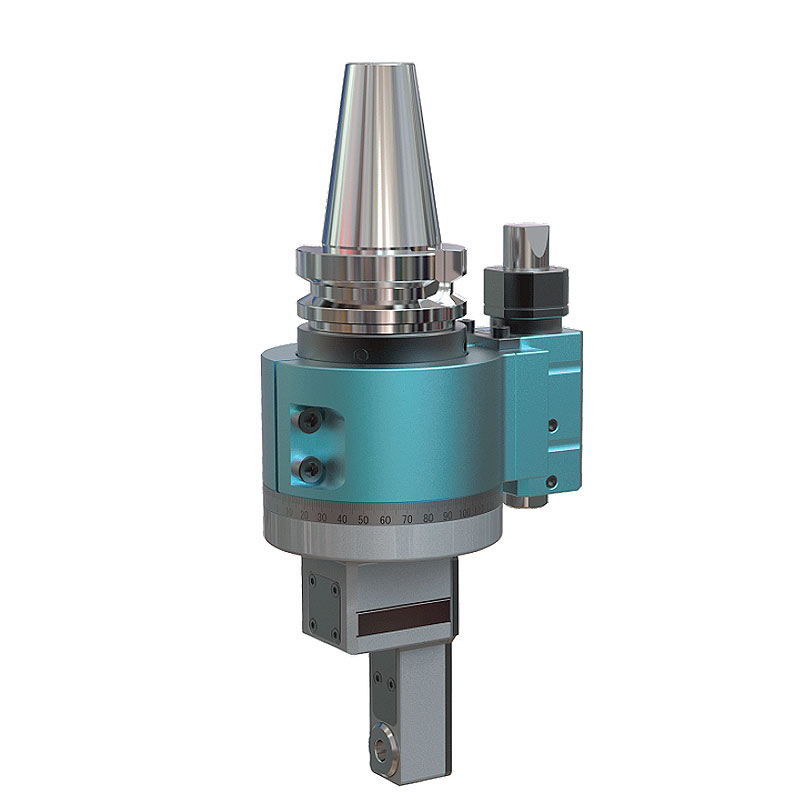

AG90-B3

Inquire Now Next

Product Details

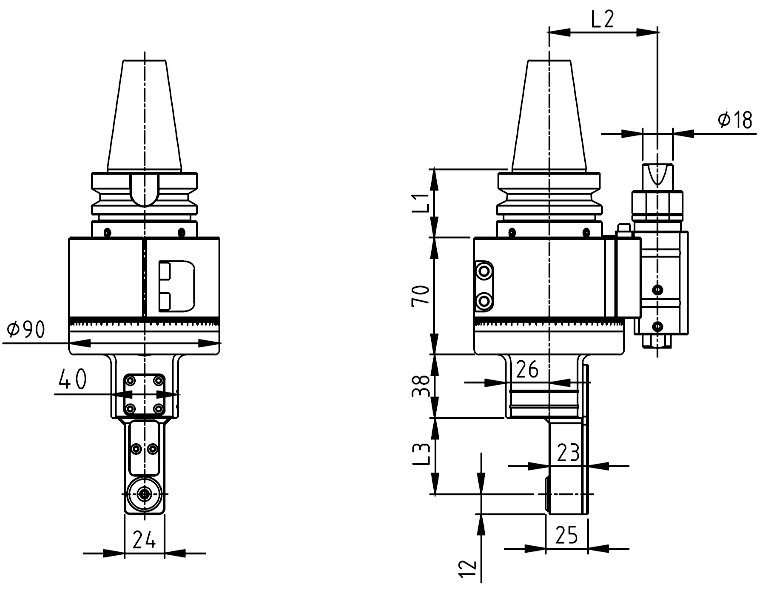

Product Size

Product Parameters

Model	Output	L1	L2	L3	Power	Maximum speed	Maximum torque	Speed ratio
AG90-B3	0-φ3	41/48	65/80	45.5	1Kw	4500RPM	6Nm	29 : 18 (Growth rate)
AG90-B3-80	0-φ3	41/48	65/80	81.5	1Kw	4500RPM	6Nm	29 : 18 (Growth rate)
AG90-B3- 100	0-φ3	41/48	65/80	99.5	1Kw	4500RPM	6Nm	29 : 18 (Growth rate)
